Friday, January 23, 2015

How Long Would It Take For Humans To Get To The Closest Star From Our Sun?

http://www.businessinsider.com/
Earth Sky
  • Jan. 14, 2015, 12:09 PM
Outer space is big. Really, really, really big.

And that's why NASA has no plans at present to send a spacecraft to any of the 1,876 known planets (as of January 9, 2015) beyond our solar system.
Alpha Centauri is the nearest star system to our sun at 4.3 light-years away. Can't we even go that far?
The answer is … not easily.
A distance of 4.3 light-years equals trillions of miles away from Earth – nearly 300,000 times the distance from the Earth to the sun.
How might we travel to Alpha Centauri, the next-nearest star?
And how long would it take to get there?
Would a conventional rocket work?
Consider the Space Shuttle, which traveled only a few hundred kilometers into space. If Earth were the size of a sand grain, this would be about the width of a hair in contrast to a 10-kilometer distance to Alpha Centauri.
You'd need about 10,000 shuttle main engines in sequence just to build up a decent speed (say, 1/100th light speed).
The Space Shuttles weren't starships. At a maximum speed of about 17,600 mph (about 28,300 kph), it would have taken a Space Shuttle about 165,000 years to reach Alpha Centauri.

space shuttle
AP These can get us to space,
but won't take us to the stars

How about the Voyager spacecraft? These two unmanned space probes – Voyager 1 and Voyager 2 – were launched in 1977. They're now heading out of our solar system. The Voyagers aren't aimed toward Alpha Centauri, but if they were, they'd take tens of thousands of years to get there.
On the other hand, eventually, the Voyagers will pass other stars. In about 40,000 years, Voyager 1 will drift within 1.6 light-years (9.3 trillion miles) of AC+79 3888, a star in the constellation of Camelopardalis. In some 296,000 years, Voyager 2 will pass 4.3 light-years from Sirius, the brightest star in the sky. Hmm, 4.3 light-years. That's the distance between us and Alpha Centauri.
The problem with conventional rockets is that, if you're carrying fuel, you need more fuel in order to carry your fuel to accomplish star-to-star travel.




alcubierre warp drive overview


Warp drive?
Using current technology, a trip to Alpha Centauri would take tens to hundreds of thousands of years.
But what if we would travel faster than light? Sound impossible?
A couple of years ago, Dr. Harold "Sonny" White – who leads NASA's Advanced Propulsion Team at Johnson Space Center – claimed to have made a discovery which made plausible the idea of faster-than-light travel, via a concept known as the Alcubierre warp drive.
This concept is based on ideas put forward by Mexican physicist Miguel Alcubierre in 1994. He suggested that faster-than-light travel might be achieved by distorting spacetime, as shown in the illustration above.
Harold "Sonny" White has been working to investigate these ideas further, and, in June of 2014, he unveiled images of what a faster-than-light ship might look like. Artist Mark Rademaker based these designs on White's theoretical ideas. He said creating them took more than 1,600 hours, and they are very cool. See the 2014 faster-than-light spacecraft designs on this Flickr page.
The video below presents Harold White's talk at the SpaceVision 2013 Space Conference in November, 2013 in Phoenix. He talks about the concepts and progress in warp-drive development over recent decades.

Is it faster-than-light travel possible, via the Alcubierre warp drive? As with conventional propulsion systems, the problem is energy. In this case, it's the type of energy the warp drive would need. Daily Kos said:
In order to form the warp field/bubble, a region of space-time with negative energy density (i.e. repulsing space-time) is necessary. Scientific models predict exotic matter with a negative energy may exist, but it has never been observed. All forms of matter and light have a positive energy density, and create an attractive gravitational field.
So faster-than-light travel via the Alcubierre warp drive is highly speculative, to say the least. With current technologies, it's not possible.

NASA Warp Drive Spaceship
Youtube/ Space Conferences  What a spaceship
 with warp drive might look like.

However, if it could be accomplished, it would reduce the travel time to Alpha Centauri from thousands of years to just days.
Want technical details on the Alcubierre warp drive? Read this article on Daily Kos.
NASA has a whole area on its website about faster-than-light travel, in which it basically says … it's not currently possible.
Other alternate propulsion methods have been discussed, for example, antimatter engines. They work on the principle that, when antimatter and matter meet, they annihilate each other, releasing vast amounts of energy.
Scientists have observed bits of antimatter in particle accelerators. But no one knows how to create enough antimatter, or how to store it, for a trip to the stars.
How about light sails? This very romantic notion for travel among the stars would rely on thin, lightweight reflective sails, powered by the sun, other stars, or even lasers fired from Earth. You start slow, but accelerate up to light speeds. However, no one imagines a light sail could enable us to travel to Alpha Centauri within a human lifetime.
But the propulsion issues are just part of the problem. The real problem might be when to decide to go.

permanent space colony 1
Future Human Evolution

The real problem with traveling to Alpha Centauri. Let's suppose that faster-than-light travel isn't going to become a reality. Suppose we have to chose another method of travel – a conventionally powered space arc of some kind, or even an antimatter drive, or a solar sail. Now suppose we set out for a trip among the stars.
Suppose that, generations from now, our descendants arrive at a planet in the Alpha Centauri system.
They might be greeted by brass bands and crowds of earthlings – who left later, but traveled via a more efficient process – and so made the trip in a shorter time. All aboard!
Bottom line: At 4.3 light-years away, the Alpha Centauri system is the nearest star system to our Earth and sun, but getting there would be extremely difficult.

Read more about the Alpha Centauri system
Whoa! Earth-sized planet in Alpha Centauri system
NASA's way cool retro posters for futuristic space travel

NASA’s way cool retro posters for futuristic space travel

http://earthsky.org/

Making future travel plans .. with an emphasis on ‘future?’ Check out these exoplanet travel posters from NASA.
In late December, 2014, the NASA Jet Propulsion Laboratory’s (fictional) Exoplanet Travel Bureau released these 1930s-style travel posters depicting three exoplanets as destinations – hypothetical, so far – for future travel. These worlds orbiting stars besides our sun exist, alright, but all are vastly too far away to travel to in the course of a single human lifespan, with existing technology. But someday, maybe. Which one would you choose for a visit?

Image credit: NASA/JPL
Image credit: NASA/JPL

Destination #1: Kepler-16b, located 200 light-years from Earth in the direction of the constellation Cygnus. Like Luke Skywalker’s planet Tatooine in Star Wars, Kepler-16b orbits not one but two stars. It’s the first confirmed, unambiguous example of a planet orbiting a double sun. Although it’s depicted here as a terrestrial planet, Kepler-16b might also be a gas giant like Saturn.
Down side: It has a temperature similar to that of dry ice (-109.3°F or -78.5°C). Be sure to bring along a jacket!

Up side: Double sunsets.

View lager. | Image credit: NASA/JPL
Image credit: NASA/JPL

Destination #2: Kepler-186f, located 490 light-years away in the direction of the constellation Cygnus. Kepler-186f is the first Earth-size planet discovered in its star’s habitable zone – aka the Goldilocks zone. That is the zone of possible orbits around another stars in which liquid water could exist on the planet’s surface.
But don’t take that to mean that stars in the habitable zone would be similar to Earth.
For example, Kepler-186f’s star is much cooler and redder than our sun. If plant life does exist on a planet like Kepler-186f, its photosynthesis could have been influenced by the star’s red-wavelength photons, making for a color palette that’s very different than the greens on Earth.

View larger |  Image credit: NASA/JPL
Image credit: NASA/JPL

Destination #3: HD 40307g, located 42 light-years away in the direction of the southern constellation Pictor. Is this world a super-Earth or a mini-Neptune? Scientists aren’t sure whether it has a rocky surface or a surface buried under thick layers of gas and ice. One thing is certain though, says NASA, at eight time Earth’s mass, the gravitational pull of HD 40307g is much, much stronger than what we experience on the surface of our home world. Skydiving, anyone?
NASA JPL Visual Strategists Joby Harris, David Delgado and Dan Goods created these posters.
Bottom line: Exoplanet travel posters from NASA.
Read more about these travel posters from NASA/JPL
How long would it take to get to Alpha Centauri?

Files from government UFO investigation now available online

Yahoo News

(Illustration courtesy of All Time Conspiracies)
(Illustration courtesy of All Time Conspiracies)

Conspiracy theorists, UFO enthusiasts and amateur Internet sleuths, rejoice! Forty-six years after the conclusion of Project Blue Book, a secret U.S. Air Force investigation into reported UFO sightings, the project’s declassified files are now available online for free.

Project Blue Book launched in 1952, the third in a series of Air Force investigations aimed at scientifically studying UFOs and determining whether they were a threat to national security. Though the program was officially terminated in 1970, Project Blue Book files could previously be accessed in full only by visiting the National Archives in Washington, D.C. But now, thanks to a man named John Greenewald, who displays more than a million pages of government documents he’s obtained through Freedom of Information Act requests on his website The Black Vault, anyone can pour through all 130,000 Blue Book files without leaving home.

According to an interview with the UFO news website OpenMinds.tv, Greenewald started The Black Vault when he was 15 and, after nearly two decades of relentless FOIA-ing, now claims to host the largest online collection of declassified government data on everything for environmental issues to terrorism and mind control. But the most exciting part about Greenewald’s latest acquisition is that, according to the U.S. Air Force, 701, or 5.5 percent, of the 12,618 reported sightings included in the Blue Book files remain “unidentified”—a challenge UFO enthusiasts and researchers will surely be eager to accept.

“It is a project that lasted for over 20 years, and they investigated thousands of cases. Sure, many of them they claimed were all explanatory, but you still have a few gems that remain a mystery,” Greenewald told Open Minds. “But further, you can use this data to compare and contrast to what it is today and start drawing conclusions or, rather, maybe pose new questions that investigators haven’t thought of yet.”

Thursday, January 22, 2015

Type 60 Self-propelled 106 mm Recoilless Gun

From Wikipedia, the free encyclopedia

Type 60 Self-propelled 106 mm Recoilless Gun
Komatsu Type 60 Recoilless Gun during winter exercises
Type Tank destroyer
Place of origin Japan
Service history
In service 1960-2008
Used by  Japan
Production history
Designer Komatsu
Designed 1956-1960
Manufacturer Komatsu
Produced 1960–77
Number built 252
Specifications
Weight 8,000 kilograms (18,000 lb)
Length 4.3 meters (14 ft 1 in)
Width 2.23 meters (7 ft 4 in)
Height 1.38 meters (4 ft 6 in)
Crew 3

Caliber 105 millimeters (4.1 in)
Elevation -20° to +15°
Traverse 60°
Muzzle velocity 500 m/s
Effective range 2,750 meters (3,010 yd)
Maximum range 7,700 meters (8,400 yd)

Armor 12 millimeters (0.5 in) steel
Main
armament
2 × M40 recoilless rifles
Secondary
armament
.50 caliber spotting rifle
Engine Komatsu 6T 120-2 air-cooled, 6-cylinder diesel
150 horsepower (110 kW)
Power/weight 15 hp/t
Transmission manual (4 forward and 1 reverse gears)
Suspension torsion bar
Ground clearance 0.35 meters (14 in)
Fuel capacity 140 liters (37 U.S. gal)
Operational
range
250 kilometers (160 mi) (road)
Speed 55 kilometers per hour (34 mph)
The Type 60 Self-propelled 106 mm Recoilless Gun (60式自走無反動砲 roku-maru-shiki-jisou-muhandou-hou?) is a light anti-tank vehicle developed by Japan in the late 1950s. It mounts two M40 106 mm recoilless rifles as its main armament.

Development

In the mid-1950s the Japan Ground Self-Defense Force contracted for one prototype from Komatsu (SS1) and Mitsubishi Heavy Industries (SS2) powered by a 110 hp six-cylinder diesel engine and fitted with two 105-millimeter (4.1 in) recoilless rifles. They were delivered in 1956. A second series of prototypes was built with 4 recoilless rifles, but adoption of the American M40 forced the reversion to two weapons. A third series of three prototypes was built by Komatsu as the SS4 that were heavier with a more powerful engine, a new transmission and clutch and a two-speed auxiliary transmission. They were accepted into service in September 1960.
Starting in 1974 a 150 hp Komatsu SA4D105 air-cooled, 4-cylinder diesel engine was fitted.

Operation


Rear view of a Type 60 at the Sinbudai Old Weapon Museum, Camp Asaka, Japan
The commander is seated to the left of the two weapons and his position is attached to their mounting so that he remains at the same height when they are elevated for firing. The M40s can be fired from the lowered position, but their traverse is limited to 20°, elevation to +10° and depression to -5°. The elevation mechanism is manually operated. The loader is seated to the left of the commander and must exit through his rear-opening hatch to reload the recoilless rifles while on top of the engine deck or behind the vehicle.
Only 6 rounds of ammunition are stowed on board.
As of 2001, Japan reported to the United Nations Office for Disarmament Affairs that 140 Type 60s were in service.[1]

Similar vehicles

M50 Ontos

From Wikipedia, the free encyclopedia
Rifle, Multiple 106 mm, Self-propelled, M50 “Ontos”
Ontos M50A1, the 50-cal spotting rifles can be seen on the upper guns
Type Tank destroyer
Place of origin United States
Service history
In service 1956–69
Used by United States
Wars Vietnam War
Operation Power Pack
Production history
Designer Allis-Chalmers
Designed 1952
Manufacturer Allis-Chalmers
Produced 1955–57
Number built 297
Variants M50A1
Specifications
Crew 3 (driver, gunner and loader)

Caliber 106 mm
Muzzle velocity 500 m/s
Effective firing range 2,750 m
Maximum firing range 7,700 m

Main
armament
6 × M40 recoilless rifles
Secondary
armament
1 × .30-caliber machine gun
Engine GM 6-cyl 302 in³

The Ontos, officially the Rifle, Multiple 106 mm, Self-propelled, M50, was an American light armored tracked anti-tank vehicle developed in the 1950s. It mounted six M40 106 mm recoilless rifles as its main armament, which could be fired in rapid succession against single targets to guarantee a kill.
Originally conceived as a fast tank killer, it was employed by US Marines who consistently reported excellent results when used for direct fire support against infantry during the Vietnam War. Its mobility and firepower were proven in numerous battles and operations. Produced in limited numbers and largely expended towards the end of the conflict, the Ontos was removed from service in 1969.

Development

The Ontos (Greek for "thing" [1]) project was created to be an air transportable tank-destroyer capable of being lifted by the cargo aircraft of the 1950s. This limited it to a weight between 10 and 20 metric tons, the only other limitation to the design being that it had to use the six-cylinder engine then widely used in the army's GMC trucks. Allis-Chalmers was awarded the contract on August 12, 1955, for 297 vehicles.
Allis-Chalmers' first vehicle, completed in 1952, was based on the running gear of the M56 Scorpion light anti-tank vehicle. The vehicle mounted a cast steel turret with two arms holding three rifles each. This early model could traverse the turret only about 15 degrees. A second prototype used a new suspension system including new tracks, and a newer turret with about 40 degrees traverse. Only eighteen rounds for the main guns could be carried inside the vehicle due to limited space. Four of the rifles also had .50-caliber spotting rifles attached, firing a round with the same trajectory as the 106 mm round, that gave off a puff of smoke on impact. The spotting rifles were thus used to line up the 106 mm recoilless rifles with the target. A single .30 caliber M1919A4 machine gun was also carried for anti-infantry use.
The vehicle was taken to the Aberdeen testing facility where single rifles had been tested. When all six weapons were fired at once, the back blast from the firing knocked bricks out of a nearby building and knocked the rear windows out of several cars. The prototype and testing stage was completed by 1955, at which point the Army canceled its order. As an anti-tank vehicle the Ontos had several problems, including a small ammunition load, a very high profile for such a small vehicle, and the need for the crew to exit the vehicle in order to reload the guns, exposing them to enemy fire. Although the Army canceled their order, the Marine Corps were desperate for any anti-tank vehicles they could get, and ordered 297. Production ran from 1955 through 1957. The first vehicle accepted by the Marine Corps was on 31 October 1956.

Variants and upgrades

Several variants were also studied. The Utility Vehicle, Tracked, Infantry, T55 was a light APC, but only two versions of the prototype were built. It proved impractical due to the limited room inside, carrying only five infantry and forcing the driver to lie prone. A "stretched" version known as the Utility Vehicle, Tracked, Infantry, T56 was also built, and while it held a complete eight-man team, their equipment had to be carried on the outside. Neither was considered very useful.
In 1960 there was a brief study made to replace the Ontos's 106 mm rifles with a new 105 mm design that included a re-loading system similar to that on a revolver. This project was not accepted.
Another proposed upgrade was replacing the GMC engine with a newer Chrysler 361 in³ V8 engine. This upgrade was implemented and the variant was named Rifle, Multiple 106 mm, Self-propelled, M50A1. However of the 297 vehicles initially accepted by the Marines, only 176 were converted between 1963 to 1965 to this standard.

Service

While the M50 was designed as a tank destroyer, the NVA deployed few tanks. It was more widely used for direct fire support for the infantry in combat, a role that was never emphasized in training or doctrine. Like the army's M113, its light armor was effective against small arms but vulnerable to mines and rocket-propelled grenades. Consequently many Ontos were deployed in static defense positions.
The Ontos was particularly liked by its crews, and praised by commanders. Their relatively light weight meant that the M50s could also go where tanks got bogged down. The Ontos, with its lower ground pressure, could drag timbers up to the tanks to help get them unstuck. In another operation, the Ontos was the only tracked vehicle light enough to cross a pontoon bridge. In the Battle of Hue, regimental commander Colonel Stanley Hughes felt the Ontos was the most effective of all marine supporting arms. Its mobility made it less vulnerable than tanks, which suffered heavy losses, while at ranges of 300 to 500 yards (270 to 460 m), its recoilless rifles could knock holes in or completely knock down walls. The appearance of an Ontos was sometimes enough to make the enemy break and run, and anecdotal accounts describe the enemy fleeing occupied buildings when an Ontos's spotting round entered a window. In Operation DeSoto, the introduction of the large CH-53 Sea Stallion helicopter made possible moving a platoon 25 miles (40 km) south of Quan Ngai City carrying Ontos in slings underneath the aircraft.[2]
The Ontos units were deactivated in May 1969, and some of the vehicles were handed over to an army light infantry brigade. They used them until they ran out of spare parts, and then removed the turrets and used them as fixed fortifications. Both these and the rest of the vehicles returned from Vietnam in 1970 and were cut up for scrap, with some of the chassis being sold off as construction vehicles.[citation needed]

Preserved vehicles on display


M50 Ontos on display at the National Museum of the Marine Corps.
There are Ontos on display at:

See also

 http://temadaily.bg/userfiles/images/OntosE.jpg

 http://i177.photobucket.com/albums/w226/redleg12/M5063.jpg

 http://media.moddb.com/images/mods/1/19/18132/ontos.1.jpg

http://img339.imageshack.us/img339/7955/m50a1eo1.jpg

 http://upload.wikimedia.org/wikipedia/commons/thumb/3/34/Ontos.jpg/300px-Ontos.jpg

http://www.allworldwars.com/image/082/Armor50sPictorialDictionary-029.jpg

http://www.globalsecurity.org/military/systems/ground/images/m274_m40_090716-m-3680m-008.jpg


https://milinme.files.wordpress.com/2011/09/mmut-0016.jpg

http://www.g-class.ru/getfile.asp?mode=original&id=1557

Type 60 Self-propelled 106 mm Recoil-less Gun

 http://plamoya.com/bmz_cache/3/300fc49376648394200aacb44e600386.image.500x452.jpg

 http://upload.wikimedia.org/wikipedia/commons/4/43/JGSDF_Type60_RR(SP).jpg

 http://bemil.chosun.com/nbrd/files/BEMIL085/upload/2006/01/%20JGSDF%20Type%2060%20self%20propelled%20106mm%20cannon_12.jpg

http://upload.wikimedia.org/wikipedia/ja/1/1c/JGSDF_Type60_Self-propelled_106mm_Recoilless_Gun20090419-01.jpg

http://i.imgur.com/j1c1N71.jpg


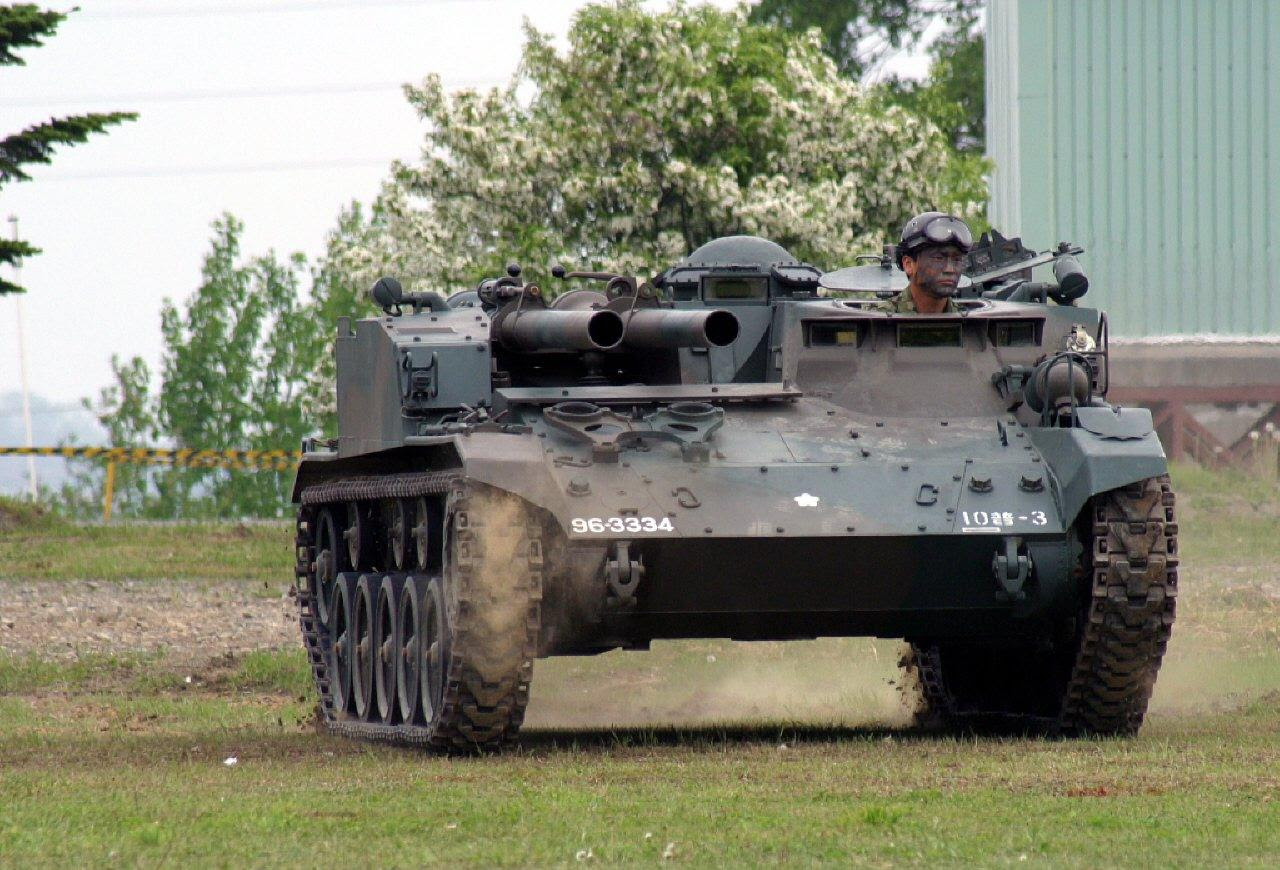

https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh0mUfoe7x4i_MArvG7iptylBew-L1eYTcA1nCzXcewX7eRDM92iRX2JMb-H5lOVQ1GuepskIyZbgvbfR-AKCDYJZdFwwagmvGKeWjcBdtNPh9PTxjKZIiBI1Wu8qK-PtQ_Z2HvV4SJp1k/s1600/type60sprr-03.jpg

http://www.scalemates.com/products/img/2/5/4/246254-10934-43.jpg?nr=007969&company=aoshima&name=jgsdf%20type%2060%20self-propelled%20106mm%20recoilless%20gun

http://upload.wikimedia.org/wikipedia/commons/a/a4/Type60leftfront.jpg

Jagdpanzer IV

From Wikipedia, the free encyclopedia
Jagdpanzer IV
Panzermuseum Munster 2010 0449.JPG
Jagdpanzer IV at the Deutsches Panzermuseum
Type Tank destroyer
Place of origin Nazi Germany
Production history
Produced December 1943 – April 1945
Number built about 2,000
Specifications (Jagdpanzer IV/70(V)[1])
Weight 25.8 tonnes (28.4 short tons; 25.4 long tons)
Length 8.5 m (27 ft 11 in)
Width 3.17 m (10 ft 5 in)
Height 1.85 m (6 ft 1 in)
Crew 4

Armor 10–80 mm (0.39–3.15 in)
Main
armament
1x 7.5 cm Pak 42 L/70
55 rounds
Secondary
armament
1x 7.92 mm Maschinengewehr 34
600 rounds
Engine Maybach HL 120 TRM
300 PS (296 hp, 221 kW)
Power/weight 11.63 PS/tonne
Suspension Leaf springs
Operational
range
210 km (130 mi)
The Jagdpanzer IV, Sd.Kfz. 162, was a tank destroyer based on the Panzer IV chassis built in three main variants. As one of the casemate-style turretless Jagdpanzer (tank destroyer, literally "hunting tank") designs, it was developed against the wishes of Heinz Guderian, the inspector general of the Panzertruppen, as a replacement for the Sturmgeschütz III (StuG III). Guderian objected against the needless, in his eyes, diversion of resources from Panzer IV tank production, as the Stug III and Sturmgeschütz IV were still more than adequate for their role.
Officially, only the L/48-armed vehicle was named Jagdpanzer IV. The L/70-armed vehicle was named Panzer IV/70. In this article, both versions are referred to in general as Jagdpanzer IV, except in the variants and surviving vehicles section.

Development

After the Battle of Stalingrad, in September 1942 the Wehrmacht's arms bureau, the Waffenamt, called for a new standard for assault weapons: 100 mm of armor to the front, 40–50 mm on the sides, wider tracks, ground clearance of 50 cm, top speed of 26 km/h and the lowest possible firing positions. The new Panzerjager ("tank hunter") design would be armed with the same 7.5 cm gun as fitted to the Panther: the Pak 42 L/70. Initially a new chassis was planned, but that of the Panzer IV had to be used.
Previous efforts to mount bigger guns on smaller chassis resulted in the Marder series as well as StuG IIIs. The Marder series were tall and had open crew compartments. The new design had a low silhouette and completely enclosed fighting compartment.
The Jagdpanzer IV used Panzer IV chassis 7 (known as BW7), but the almost-vertical front hull plate was replaced by sloped armor plates. Internally, the layout was changed to accommodate the new superstructure, moving the fuel tanks and ammunition racks[clarification needed]. Since the Jagdpanzer lacked a turret, the engine which originally powered the Panzer IV's turret could be eliminated.
The new superstructure had 80 mm thick sloped armour, which gives a much greater armor protection than a vertical armor of 100 mm. To make the manufacturing process as simple as possible, the superstructure was made out of large, interlocking plates which were welded together.
Armament consisted of a 7.5 cm main gun, originally intended to be the Pak 42 L/70, but due to shortages older guns were initially used, the 7.5 cm Pak 39 L/43 for preproduction, and the 7.5 cm Pak 39 L/48 for initial production variant. These were shorter and less powerful than the Pak 42.
Installing the much heavier Pak 42 meant that the Jagdpanzer IV was nose heavy, especially with the heavy frontal armor. This made them less mobile and more difficult to operate in rough terrain, leading their crews to nickname them Guderian-Ente ("Guderian's duck"). To prevent the rubber rims of the roadwheels being dislocated by the weight of the vehicle, some later versions had steel roadwheels installed on the front.
The final prototype of the Jagdpanzer IV was presented in December 1943 and production started in January 1944, with the Pak 39 L/48 armed variant staying in production until November. Production of the Pak 42 L/70 armed variants started in August and continued until March/April 1945.
On August 19–22, 1943, after the Battle of Kursk, Hitler received reports that StuG IIIs performed better than Panzer IV within certain restraints of how they were deployed. It was thus intended to stop production of the Panzer IV itself at the end of 1944 to concentrate solely on production of the Jagdpanzer IV, but the Panzer IV was in production all the way until the end of the conflict along with Jagdpanzer IV.

Variants


The 0-Serie preproduction vehicle at Deutsches Panzermuseum
  • Jagdpanzer IV 0-Serie
with 7.5 cm Pak 39 L/43: a small number of these were built as the preproduction (0-Serie) probably in December 1943.[1]
  • Jagdpanzer IV (Sd.Kfz.162[1])
with 7.5 cm Pak 39 L/48, official name Sturmgeschütz neuer Art mit 7.5 cm Pak L/48 auf Fahrgestell PzKpfw IV, with 769–784 produced in January 1944 - November 1944.[1]
  • Panzer IV/70 (V) (Sd.Kfz.162/1[1])
was one of two variants armed with the same Pak 42 L/70 gun. The (V) stands for the designer, Vomag. The most produced version, with 930–940 built in August 1944 - April 1945.[1]
  • Panzer IV/70 (A) (Sd.Kfz.162/1[1])
the other Pak 42 L/70 armed Jagdpanzer IV. In order to send Pak 42 L/70 armed vehicles to the front as soon as possible, in July 1944 Hitler ordered an interim solution to speed up Nibelungenwerke's transition from Panzer IV production to Panzer IV/70 production. "A" stands for Alkett, a manufacturer of the StuG III, that was ordered to redesign the Jagdpanzer IV superstructure to be mounted onto a standard Panzer IV chassis. The Vomag design used a modified chassis permitting a very low silhouette, mounting the superstructure onto the original Panzer IV chassis required additional vertical steel plates mounted onto the chassis to counter height differences. The resulting vehicle was about 40 cm taller and lacked the sharp edged nose of the Vomag variant. Only 278 were built by Nibelungenwerke from August 1944 to March 1945.
Minor modifications and improvements were made throughout the production runs of all variants, as well as several field improvements, the most common being the addition of armor sideskirts.
Originally the Jagdpanzer IV's gun had a muzzle brake installed, but because the gun was so close to the ground, each time it was fired, huge dust clouds would rise up and betray the vehicle's position, leading many crews to remove the muzzle brake in the field. Later variants dispensed with the muzzle brake.
Early vehicles had zimmerit applied to the hull to protect against magnetic mines, but this was discontinued after about September 1944. Later vehicles had three return rollers rather than the original four, and adopted the twin vertical exhausts typical of the late Panzer IV series. Some late vehicles also had all-steel road wheels on the first couple of bogies on each side.

Combat history


Jagdpanzer IV with infantry support, Hungary, 1944
The Jagdpanzer IV served in the anti-tank sections of Panzer and SS Panzer divisions. They fought in Normandy, the Battle of the Bulge and on the Eastern Front. They were very successful tank destroyers but performed badly when used out of role as substitutes for tanks or assault guns, as most tank destroyers were.
In the later stages of the war however, they were increasingly used as tank substitutes, because there was often nothing else available.
Romania received several Jagdpanzer IV tank destroyers from the Red Army after the war ended. They were officially known as TAs T4 in the army inventory and were used until 1950. All German armour was scrapped in 1954.
One of the more notable Jagdpanzer IV aces was SS-Oberscharführer Rudolf Roy from the 12th SS Panzerjäger Battalion of 12th SS Panzer Division. He was killed by an American sniper while looking out of the hatch of his Jagdpanzer IV, on December 17, 1944 during the Ardennes Offensive in Belgium.
After the war, West Germany continued the Jagdpanzer concept with the Kanonenjagdpanzer, but few other fixed-casemate self-propelled guns were built postwar. An innovative exception was the Swedish Stridsvagn 103, or "S-Tank".

Survivors

Jagdpanzer IV 0-Serie
Jagdpanzer IV L/48
  • Deutsches Panzermuseum in Munster, Germany. It is an early version with 60 mm armor. This vehicle is on loan from the WTS in Koblenz, Germany, and previously belonged to the United States Army Ordnance Museum in Aberdeen, Maryland. It was returned to Germany in the 1960s.
  • Musée des Blindés in Saumur, France. It is an early model with 60 mm armor.
  • Thun Tank Museum in Switzerland. It is a late model with 80 mm front armor.
  • In storage in a military area in Bulgaria. This is a very early L/48 model, and the only surviving example with the driver's machine gun slot welded over. It was previously part of a defensive line on the Bulgarian border. In February 2008 it was ordered recovered by the Bulgarian Defense Minister to be either preserved in a museum in Bulgaria, or sold to a private collector.
Panzer IV L/70 (V)
Panzer IV L/70 late (A)
  • Musée des Blindés in Saumur, France. The vehicle was used in 1944-45 by Free French forces. The vehicle is displayed with damage resulting from a direct hit by an armor-piercing shell.
Wrecks
A wreck of Jagdpanzer IV L/48 is stored in Armoured Warfare Museum in Poznań. It was excavated in 2009 in the vicinity of the Citadel.

SU-85

From Wikipedia, the free encyclopedia
SU-85
SU-85 tank destroyer at the Muzeum Polskiej Techniki Wojskowej in Warsaw.jpg
SU-85 tank destroyer in Polish Army Museum.
Type Tank destroyer
Place of origin  Soviet Union
Service history
In service 1943 - 1950s (USSR)
Production history
Designer Lew S. Trojanow
Designed 1943
Produced mid-1943 - late 1944
Number built 2,050
Variants See Variants section
Specifications
Weight 29.6 tonnes (65,256 lbs)
Length 8.15 m (26 ft 9 in) overall
6.10 m (20 ft) hull only
Width 3 m (9 ft 10 in)
Height 2.45 m (8 ft)
Crew 4 (commander, driver, gunner, loader)

Armor 45 mm(1.77 in)
Main
armament
85 mm (3.34 in) D-5T gun
Secondary
armament
none
Engine V-2 12-cylinder diesel
500 PS ( 493 hp, 368 kW)
Power/weight 16,89 PS/tonne (12.43 kW/tonne)
Suspension Christie
Ground clearance 400 mm (16 in)
Fuel capacity 540 l
810 l - 900 l (with additional fuel tanks)
Operational
range
400 km (248 mi) (road)
Speed 55 km/h (34 mph) (road)
The SU-85 was a Soviet casemate-style self-propelled gun used during World War II, based on the chassis of the T-34 medium tank. Earlier Soviet self-propelled guns were meant to serve as either assault guns, such as the SU-122, or as tank destroyers; the SU-85 fell into the latter category. The designation SU-85 is derived as follows: 'SU' stands for the Russian: Samokhodnaya Ustanovka - self-propelled carriage, while "85" signifies the bore of the vehicle's armament, the 85 mm D-5S gun.

Development history

Early in World War II, Soviet tanks such as the T-34 and KV-1 had adequate firepower to defeat any of the German tanks then available. By the fall of 1942, Soviet forces began to encounter the new German Tiger tank, with armor too thick to be penetrated by the 76.2 mm guns used in the T-34 and KV tanks at a safe range.[1] The Soviet command also had reports of the Panther tank, a new, heavily armoured German tank then under development. Although the Panther was not seen in combat until July 1943, the new generation of German vehicles meant the Red Army would need a new, more powerful main gun for their armoured formations.
In May 1943, work was begun on a new anti-tank gun. Military planners directed the design bureaus of both Gen. Vasiliy Grabin and Gen. Fyodor Petrov to modify the 85mm anti-aircraft gun for use as an anti-tank weapon. Petrov's bureau developed the D-5 85mm gun. Though much too large for the T-34 or KV-1 turret, it was thought the gun could be mounted upon the chassis of the SU-122 self-propelled gun to give the weapon mobility. The version of this gun intended to be mounted upon the SU-85 was called the D-5S, with the "S" standing for self-propelled. Initially the production factory at Uralmash rejected the proposed design. Nevertheless, the administrators at Uralmash were persuaded to proceed, and the new design was put into production. The weapon was later modified to include a telescopic sight and a new ball gun mantlet. This vehicle was retitled the SU-85-II.[1]

Description

The SU-85 was a modification of the earlier SU-122 self-propelled howitzer, essentially replacing the 122 mm M-30S howitzer of the SU-122 with a D-5T high-velocity 85 mm antitank gun. The vehicle had a low profile and excellent mobility. The limited traverse of the main armament meant that the gun had to be aimed by changing the position of the tank, limiting its effectiveness in offensive operations.

Production history


A destroyed SU-85 (1944)
SU-85 production started in mid-1943, with the first vehicles reaching their units by August. When the up-gunned T-34-85 medium tank entered mass production in the spring of 1944, there was no point in continuing production of a tank destroyer without superior firepower,[2] so SU-85 production was stopped in late 1944 after 2,050 vehicles had been produced. It was replaced on the production lines by the SU-100 tank destroyer, armed with the more powerful 100 mm D-10S gun.
There were two versions: the basic SU-85 had a fixed commander's cupola with a rotating periscope and three vision blocks; the improved SU-85M had the same casemate as the later SU-100, with a commander's cupola as used on the T-34-85.

Service history


SU-85 tank destroyer of the Polish 13th Self-Propelled Artillery Regiment. This vehicle is missing the first road wheel on the right, and its track fenders.
The SU-85 entered combat in August 1943. It saw active service across the Eastern Front until the end of the war. Though a capable weapon, it was found that its 85 mm weapon was not adequate to penetrate the armour of the larger German armoured fighting vehicles. It was up-gunned to a 100 mm weapon, and replaced by the now SU-100.
The SU-85 was withdrawn from Soviet service soon after the war, and was exported to many Soviet client states in Europe and elsewhere. Some SU-85s were converted to use as command and recovery vehicles.[3] In places such as North Korea and Vietnam it remained in service for many years.[4]

Variants

Former Soviet Union

  • SU-85 Basic version with four periscopes and no commander's cupola.
  • SU-85M Improved version with SU-100 style cupola.

Poland

  • WPT-34 (1960s) - Polish repair and maintenance vehicle with a superstructure replacing the casemate, a crane, a large-diameter telescoping snorkel for deep fording operations as well as a large-spade type earth anchor in the rear. It was converted from SU-85 tank destroyers as well as T-34 medium tanks and SU-100 tank destroyers.

See also

SU-100

From Wikipedia, the free encyclopedia
SU-100
Su-100 spatg.jpg
Type Tank destroyer
Place of origin  Soviet Union
Production history
Number built 2335+
Specifications
Weight 31.6 tonnes (69,665 lbs)
Length 9.45 m (30 ft)
Width 3.00 m (9 ft 10 in)
Height 2.25 m (7 ft 5 in)
Crew 4

Armor front 75 mm (3 in)
side 45 mm (1.77 in)
roof 20 mm (.78 in)
Main
armament
100 mm gun D-10S
Secondary
armament
none
Engine V-2 12-cylinder diesel
500 hp (370 kW)
Power/weight 16 hp/tonne
Suspension Christie
Operational
range
320 km (199 mi)
Speed 48 km/h (30 mph)
For the airplane, see Sukhoi Superjet 100.
The SU-100 was a Soviet casemate-style tank destroyer armed with a powerful 100 mm anti-tank gun. It was used extensively during the last year of World War II and saw service for many years afterwards with the armies of Soviet allies around the world.

Development

The SU-85 was developed from the same chassis as the T-34 tank, but replaced its turret with a casement installation allowing larger guns to be fitted. This was used with the 85 mm D-5 gun, providing dramatically upgraded firepower compared to the T-34's 76.2 mm models. Introduced to service in 1943, the SU-85 was quickly rendered obsolete when designers managed to mount the same gun on the T-34-85.
This led to efforts to up-gun the SU-85 as quickly as possible. Development was conducted under supervision of L. I. Gorlitskiy, chief designer of all medium Soviet self-propelled guns. The work started in February 1944 and first prototype of SU-100, called "Object 138", was built in March. After intensive testing with different models of 100 mm gun Soviet engineers approved the D-10S gun for mass production. This gun was developed in Constructors Bureau of Artillery Factory No. 9 under guidance of F. F. Petrov. After the Second World War this gun was installed on T-54 and T-55 tanks and its derivatives were in service forty years after initial development.
It was built at the UZTM (Russian abbreviature УЗТМ for Уральский Завод Тяжелого Машиностроения – Ural Heavy Machinery Factory, also called Uralmash) in Yekaterinburg. The SU-100 quickly proved itself to be among the best self-propelled anti-tank guns of World War II, able to penetrate 125 mm (4.9 in) of vertical armor from a range of 2,000 m (1.2 mi) and the sloped 85 mm (3.3 in) front armor of the German Panther from 1,500 m (0.93 mi).[citation needed]
The hull of SU-100 had major improvements over the SU-85; the thickness of the front armour was increased from 45 to 75 mm (1.8 to 3.0 in), and the commander's workplace was made in a small sponson on the right side of the hull; combined with the commander's cupola this greatly improved the commander's effectiveness. For better ventilation two ventilator units were installed, instead of only one as in the SU-85. Mass production began in September 1944.

In service


SU-100 preserved in a museum in the Czech Republic
The SU-100 saw extensive service during the last year of the war. It was used en masse in Hungary in March 1945, when Soviet forces defeated the German Operation Frühlingserwachen offensive at Lake Balaton. By July 1945, 2,335 SU-100s had been built.
The vehicle remained in service with the Red Army well after the war; production continued in the Soviet Union until 1947 and into the 1950s in Czechoslovakia. It was withdrawn from Soviet service in 1957 but many vehicles were transferred to reserve stocks. Some exist to this day in the Russian Army holding facilities.
Many Warsaw Pact countries also used the SU-100, as did Soviet allies such as Egypt, Angola and Cuba. A few SU-100 were delivered to Yugoslavia after the war, under the designation M-44.[1] The SU-100 saw service in the fighting that accompanied the 1956 Suez Crisis, in which the Egyptians used SU-100s against Israel's M4 Sherman tanks. The vehicle was also utilized in the 1967 Six-Day War and the 1973 Yom Kippur War. It was modified slightly to adapt it to the sandy conditions of the Middle East, thus creating the SU-100M variant. Exported SU-100s continued in service until the 1970s, and in some countries, even later. Yugoslavs used them during the civil war however due to lack of spare parts they were quickly retired, but performed satisfactorily. The SU-100 remains in use by the Vietnam People's Army and the Korean People's Army Ground Force despite the age of the design.
SU-100s entered service with the People's Liberation Army (PLA) of China after 1 December 1950 when Soviet forces left Dalian. The armaments in Dalian were sold to China, including 99 SU-100s, 18 IS-2 heavy tanks, 16 T-54s and 224 T-34s, with which PLA formed its 1st Mechanised Division.

In popular culture

The crew of a World War II SU-100 and their vehicle are the heroes of the old Soviet film «На войне как на войне» Na vojne kak na vojne ("All's fair in love and war", literally: "In wartime it's like wartime"), one of several Soviet films made about self-propelled artillery men. Veterans of the German-Soviet War found this picture quite realistic. The movie includes a Soviet tankmen song, which is popular with both Russian armoured soldiers and civilians.


SU-100 model (1:35 scale)
A SU-100 is used by the protagonists in the movie The Misfit Brigade, where it is portrayed as a German tank, because it was readily available in Yugoslavia (where the movie was shot) and for its passable resemblance to German turretless Assault Guns and Tank Destroyers. Ironically, the film has a scene where the Germans spot one, supposedly captured by the Russians, and proclaim: "That's one of ours! It sure is, and it's a terrible paint job. You can still see the cross! ... Ivan's pinched my tank!" The film is also known as Wheels of Terror, based on the book by Sven Hassel.

Jagdpanther

From Wikipedia, the free encyclopedia
Jagdpanther
Jagdpanzer V Jagdpanther 1.jpg
Jagdpanzer V Jagdpanther
Type Tank destroyer
Place of origin Nazi Germany
Production history
Produced 1944–1945
Number built 415
Variants G1, G2
Specifications
Weight 45.5 tonnes (100,300 lb)
Length 9.87 m (32 ft 5 in)
Width 3.42 m (11 ft 3 in)
Height 2.71 m (8 ft 11 in)
Crew 5

Armor 80 mm (3.14 in) frontal
100 mm (3.93 in) mantlet
45mm side
40mm rear
Main
armament
1 × 8.8 cm Pak 43/3 or 43/4 L/71
57 rounds
Secondary
armament
1 × 7.92 mm Maschinengewehr 34
600 rounds
Engine Maybach HL230 P30 (V-12 petrol)
700 PS (690 hp, 515 kW)
Power/weight 15.4 PS/tonne
Suspension dual torsion bar
Operational
range
160 km (99 miles)
Speed 46 km/h (28.6 mph)
The Jagdpanther (German: "hunting panther") was a tank destroyer built by Nazi Germany during World War II based on the chassis of the Panther tank. It entered service late in the war (1944) and saw service on the Eastern and Western fronts. The Jagdpanther combined the very powerful 8.8 cm PaK 43 cannon of the Tiger II and the characteristically excellent armor and suspension of the Panther chassis, although it suffered from the general poor state of German ordnance production, maintenance and training in the later part of the war, which resulted in small production numbers, shortage in spare parts and poor crew readiness.

Development

The Jagdpanther had been preceded by two attempts at mounting an 8.8 cm gun as a self-propelled anti-tank weapon; Ferdinand using the ninety-one leftover Porsche-built VK4501(P) chassis from the Tiger tank competition it had lost to Henschel in 1942, and the Nashorn using a Panzer III/IV chassis. Ferdinand proved to be too heavy and Nashorn small and underpowered.[1]
A heavy tank destroyer design based on the 8.8 cm Pak 43 gun and the Panther tank chassis was ordered in late 1942 as design SdKfz 173. The prototype by MIAG was demonstrated in October 1943 before Hitler.
Production started in January 1944; in February Hitler specified the simpler Jagdpanther name instead of its original "8.8 cm Pak 43/3 auf Panzerjäger Panther".


Front of early production Jagdpanther coated in Zimmerit, Imperial War Museum, London.
To accommodate the heavier-calibre gun, much as on previous Jagdpanzer-style unturreted tank destroyers, the glacis plate and sloped hull sides of the Jagdpanther were extended up into an integral, turretless fixed casemate as part of the main hull itself to provide a roomy interior. The Jagdpanther had side armour of increased thickness (60 mm) to offset the slightly reduced angle of the side armour necessary to provide enough interior space. Frontal armour was 80mm. The new (April 1944) Panther Ausf. G had the same feature, to harmonize production and increase protection.
It was armed with the same long-barreled 8.8 cm gun as the Tiger II "King Tiger". The gun was mounted in a central mantlet which gave it a limited traverse of 11 degrees to each side. A single 7.92 mm MG-34 machine gun for local defence was in a ball mount right hand side of the front glacis plate. The machine gunner was also the wireless operator. The driver sat on the left. The gunner had a rangefinder and a periscope telescopic sight. The periscope - linked to the gun mount - was under an armoured housing on the roof.
The Jagdpanther had a good power-to-weight ratio and a powerful main gun, which enabled it to destroy any type of Allied tank. Based on the existing Panther Ausf G chassis, the vehicle did not suffer too many mechanical problems. It had an upgraded transmission (the ZF AK 7-400 heavy duty) - which had been planned for the Panther II - and final drive to counter the Panther's main weakness. It was manned by a crew of five: a driver, radio-operator, commander, gunner and a loader.[2]


Jagdpanther in Northern France.
Two main variants can be distinguished, the earlier (1944 model) G1 with a small internally bolted main gun mantlet and a modified Panther A engine deck, and the later (1945 model) G2 with a larger simplified, outside-bolted mantlet and a modified Panther G engine deck, though late G1s also had the larger mantlet. Early Jagdpanthers had two vision openings for the driver, whereas late versions had only one. The main gun originally had a monobloc gun barrel but later versions were equipped with the Pak 43/4 gun with a two-part barrel. The two part barrel was more economical as barrel wear was not even.[2]
Early G1s (to September 1944) were given Zimmerit anti-magnetic mine coating in a distinctive "small-squared" pattern.

Production and service


A Jagdpanther in France, 1944.
A total of 415 Jagdpanthers were produced from January 1944 by three manufacturers. MIAG produced 270 from January 1944 until the end of the war. Maschinenfabrik Niedersachsen-Hannover (MNH) produced 112 from November 1944. Maschinenbau und Bahnbedarf (MBA) produced 37 vehicles from December 1944.[3] Planned production had been 150 a month but the disruption to German manufacturing had made this impossible.[2]
Jadgpanthers equipped heavy antitank battalions (schwere Panzerjäger-Abteilung) and served mainly on the Eastern Front.[citation needed] In the West, they were first encountered in very small numbers late in the Battle of Normandy, where the German 654 schwere Panzerjäger-Abteilung ("654th Heavy Antitank Battalion") deployed about 12 Jagdpanthers against British units. Later, significant numbers were concentrated in the West for the Ardennes Offensive.

Survivors


Jagdpanther at IWM, from above. Note the three shell holes in the side
Three surviving Jagdpanthers have been restored to running condition. Two German museums, the Deutsches Panzermuseum at Munster and the Wehrtechnische Studiensammlung (WTS) at Koblenz, have one running Jagdpanther each. The SDKFZ Foundation in the UK has restored one Jagdpanther to running condition, using two wrecked Jagdpanthers to complete one. The other wreck will also be restored.[citation needed]
There are at present seven other known surviving Jagdpanthers, which are on display at:

Media appearances

See also

B1 Centauro

From Wikipedia, the free encyclopedia
For the armoured division see 131 Armoured Division Centauro.
Centauro
B1 Centauro with IFOR Markings.
Type Wheeled Tank Destroyer
Place of origin  Italy
Specifications
Weight 24,000 kg
Length 7.85 m (25 ft 9 in)
Width 2.94 m (9 ft 8 in)
Height 2.73 m (8 ft 11 in)
Crew 4 (commander, gunner, loader and driver)

Armor Welded steel armoured hull
Main
armament
105 mm gun
Secondary
armament
2x7.62 mm MGs
Engine IVECO Diesel
520 hp
Power/weight 19.35 hp/tonne
Suspension Wheel 8 x 8
Operational
range
800 km (500 mi)
Speed 108 km/h (67 mph)
The Centauro is a wheeled tank destroyer designed for light to medium territorial defense and tactical reconnaissance. It was developed by a consortium of manufacturers, the Società Consortile Iveco Fiat - Oto Melara (CIO). Iveco Fiat was tasked with developing the hull and propulsion systems while Oto Melara was responsible for developing the turrets and weapon systems.

Description

The vehicle was developed in response to an Italian Army requirement for a tank destroyer with the firepower of the old Leopard 1 main battle tank then in service with the Italian Army but with greater strategic mobility. The main mission of the Centauro is to protect other lighter elements of the cavalry, using its good power-to-weight ratio, excellent range and cross country ability (despite the wheeled design) and computerized fire control system to accomplish this mission. Centauro entered production in 1991 and deliveries were complete by 2006.

Armament

The main armament consists of the Oto Melara 105 mm / 52 caliber gyro-stabilized high-pressure, low-recoil gun equipped with a thermal sleeve and an integrated fume extractor, with 14 ready rounds in the turret and another 26 rounds in the hull. The gun can fire standard NATO ammunition, including APFSDS (Armour Piercing Fin-Stabilized Discarding Sabot) rounds.
Secondary weapons are a 7.62 mm coaxial machine gun, and another 7.62 mm anti-aircraft machine gun with 4,000 rounds of ammunition.
Aiming is provided by Galileo Avionica TURMS fire control system (the same fitted to the Italian Ariete tank) and is equipped with a muzzle referencing system and a fully digital ballistic computer. The gunner sight is fully stabilized and comes equipped with a thermal imager and laser rangefinder. The commander's station is equipped with a panoramic stabilized sight, an image intensifying night sight and a monitor displaying the image from the gunner's thermal sight. This allows Centauro to engage stationary or moving targets while stationary or on the move, in day or night.

A Centauro in Iraq

Armour

The Centauro hull is an all-welded steel armoured hull which is designed to withstand in the baseline configuration 14.5 mm bullets and shell fragments with protection against 25 mm munition on the frontal section. Protection can be increased by the addition of bolt on appliqué armour which increases protection against 30 mm rounds.
The Centauro is also equipped with an NBC (Nuclear, Chemical and Biological) warfare protection system which is integrated with the vehicle's air conditioning system. The vehicle is also equipped with a four-barreled smoke grenade launcher mounted on each side of the turret and a laser warning receiver.

Propulsion

Centauro is powered by an Iveco V6 turbo-charged after-cooled diesel engine delivering 520 hp (382.4 kW). This drives a ZF-designed automatic transmission which is manufactured under license by Iveco Fiat. The transmission system has five forward and two reverse gears. This drives 8 wheels which are each equipped with an independent suspension system and is furthermore equipped with run-flat inserts and a Central Tyre Inflation System (CTIS). Braking is provided by 8 disc brakes. Steering is provided on the first and second axles and at slow speed with also the fourth axle. Together, this allows Centauro to achieve road speeds in excess of 100 km/h, negotiate gradients up to 60%, ford water up to a depth of 1.5m without preparation, and have a turning radius of 9m.

Combat history

Centauro was deployed in the former Yugoslavia and Somalia, where the design proved successful. Centauro was usually employed to escort motor convoys, for wide area control and for road patrols. Centauros were also deployed during operation Antica Babilonia, the Italian involvement in the Iraq War. During this operation, a Centauro troop took part in the battle for the bridges of Nassiriya, destroying a building where snipers were hiding.[1] It is currently deployed as part of UNIFIL forces in Lebanon.

Variants

  • Centauro Reconnaissance Anti-Tank Variant:
The baseline variant.

Freccia in Rome
  • Centauro 120 mm
A Centauro with a low recoil 120/45 cannon, in newly designed turret and with new composite armour that can resist up to 40mm APFSDS rounds on the front.
  • Freccia a wheeled infantry fighting vehicle
Italian army ordered a prototype of the 120 mm variant, with improved armour. The first trials are expected in 2012.
An early prototype, armed with a 155x39 gun, was seen at the national Italian holiday of 2 June (2011).
A known AAA and c-ram prototype version, called "Draco", is armed with a 76 mm automatic cannon, and with Strales directional ammunition system.
A 125 mm gun-armed version is being tested by the Russian army, alongside the standard 105 mm-armed version.[2]

Operators

Italy Italian Army
  • 400 Centauro Reconnaissance Anti-Tank Variant (around 100 vehicles from the first batches retired)
  • 249 VBM Freccia (172 standard, 36 combat anti-tank, 20 command center and 21 mortar carrier on order)
  • 4 VBM Freccia Ambulance Variant
Spain Spanish Army
  • 84 Centauro Reconnaissance Anti-Tank Variant
  • 4 VBM Freccia Recovery Variant
Oman Royal Army of Oman
  • 6+3 Centauro 120 mm Variant (option for further 24)
United States US Army
Leased 16 Centauro between 2000 and 2002 for evaluation, and to gain experience for the introduction of the Stryker Mobile Gun System.[3]


M40 recoilless rifle

From Wikipedia, the free encyclopedia

M40 Recoilless Rifle
Greek infantry with an M40
Type Recoilless rifle
Place of origin United States
Service history
In service Mid 1950s–present
Used by See Users
Wars Vietnam War
Cambodian Civil War
Portuguese Colonial War
Indo-Pakistani War of 1971
Rhodesian Bush War
Falklands War[citation needed]
Iran–Iraq war
Libyan Civil War
Syrian Civil War
Production history
Manufacturer Watervliet Arsenal
Specifications
Weight 209.5 kg (462 lb)
Length 3.404 m (11 ft 2 in)
Height 1.12 m (3 ft 8 in)

Shell 106×607mmR (HEAT, HEP, HEAP, Canister)
Caliber 105 mm (4.1 in)
Recoil Recoilless
Carriage Tripod
Elevation -17° to +65° (between mount legs)
-17° to +27° (over mount leg)[1]
Traverse 360°
Muzzle velocity 503 m/s (1,650 ft/s)[1] (M344 HEAT)
Effective firing range 1,350 m (1,480 yd)
Maximum firing range 6,870 m (M346A1 HEP-T)[2]
The M40 recoilless rifle is a lightweight,[3] portable, crew-served 105 mm weapon intended primarily as an anti-tank weapon made in the United States. The weapon is commonly described as being 106 mm, but it is in fact 105 mm; the 106 mm designation was designed to prevent confusion with the incompatible 105 mm ammunition from the failed M27.[4] It could also be employed in an antipersonnel role with the use of the antipersonnel-tracer flechette round. It can be fired primarily from a wheeled ground mount. The air-cooled, breech-loaded, single-shot rifle fired fixed ammunition. It was designed for direct firing only, and sighting equipment for this purpose was furnished with each weapon.
The M27 recoilless rifle was a 105-mm weapon developed in the early 1950s and fielded in the Korean War. Although a recoilless rifle of this caliber had been a concept since the Second World War, the weapon was hurriedly produced with the onset of the Korean War. The speed with which it was developed and fielded resulted in problems with reliability caused by trunnions that were mounted too far to the rear. The M27 was also considered too heavy by the U.S. Army and had a disappointing effective range due to the lack of a spotting rifle. Taking the M27 as a the basis for a new design, the Army developed an improved version of the M27 that was in 1955 type-designated the M40 106-mm recoilless rifle.[5] Originally along with its type-designation it was also given the official name BAT for Battalion Anti-Tank gun, but that was soon dropped.[6] Although unsuitable for military purposes, M27 recoilless rifles were used to trigger controlled avalanches at ski resorts and mountain passes in the United States.[7]
